Mini Excavators

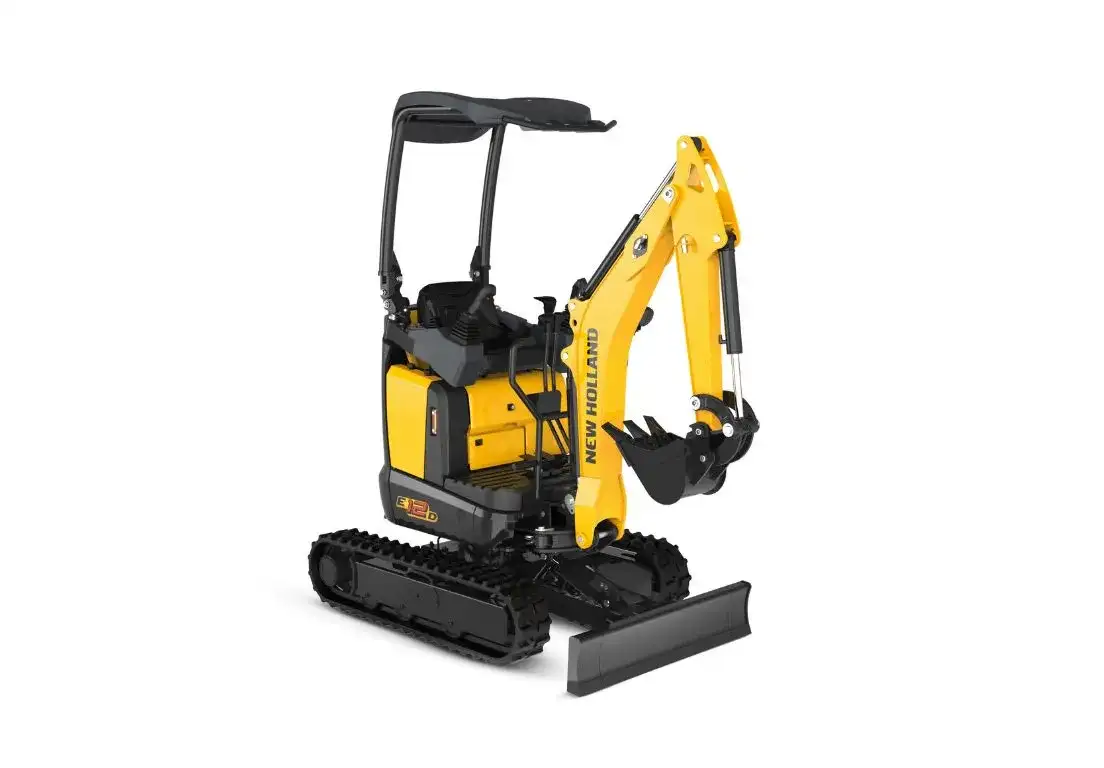

E12D

2,932 lb Mini Excavator

GET A PRICE TODAY

MODEL SPECIFICATION

GROSS CAPACITY

11.8 HP (8.8 KW)

HYDRAULICS

2.5 GALLON (US)

ENGINE

D722

MAX DIGGING DEPTH - STD/ LONG ARM

6 FT 1 IN (1860 MM) /

6 FT 6 IN (1980 MM)

MAX DIGGING HEIGHT - STD/ LONG ARM

7 FT (2130 MM) /

7 FT 3 IN (2215 MM)

OPERATING WEIGHT

2,932 LBS

BUILD SPECIFICATION

D Series mini excavators from New Holland Construction are built in-house and are designed for an improved operator experience, performance and jobsite efficiency. The E12D is a more capable, versatile machine tailored for construction crews, landscapers, utility contractors and municipalities looking to do more with a compact framework.

FEATURES

MINI EXCAVATOR, BIG POWER

The E12D is powered by a 11.8 hp (8.8 kW) Stage V-certified Kubota D722 engine, known for durability and low emissions. This power is housed in a compact and easily transportable package, measuring 7 ft 7 in (2300 mm) in height and 11 ft 3 in (3425 mm) in overall transport length.

ARMED TO DIG

Specify your D Series compact excavator with the arm length to best suit your requirements. Length on the E12D standard digging arm measures up to 2 ft 11 in (0.90 m) and 3 ft 4 in (1.02 m) with the long arm.

The standard arm yields 6 ft 1 in (1860 mm) of maximum digging depth and gets a maximum 6 ft 6 in (1980 mm) below surface with the long arm. With all this muscle, plus 1551 lbf (6.9 kN) of standard arm digging force, the E12D will quickly become your partner in productivity.

DESIGNED TO DUMP

The standard arm on the E12D provides a maximum 7 ft (2130 mm) of dump height and 2585 lbf (11.5 kN) in bucket breakout force. If your operation requires a greater dump height, opt for the optional long arm that gets up to 7 ft 3 in (2215 mm) in maximum dump height.

ATTACHMENTS FOR DEDICATED EFFICIENCY

Powering demanding attachments is a key New Holland advantage.With the right attachment, New Holland's excavators can be used for a diverse range of jobs from fence installation to concrete breaking.The E12D arrives ready to run a wide array of attachments like hydraulic hammers, compaction plates, grapples and mulchers. Models are available with factory-installed couplers, buckets and thumbs.

SIMPLE SERVICEABILITY

For contractors and operators, serviceability is a key component to weigh when considering mini excavators. The E12D includes a tipping canopy for full engine access. Just two bolts need to be removed to tip the cab.

DESIGNED FOR AND AROUND YOU

Ready to perform in any conditions, this machine features a convenient entry operator station, overhead protective canopy, and high-output LED lighting for clear visibility around the clock. With a simple ISO/SAE control pattern selector, operators can quickly toggle between control layouts to match their style or the demands of the task.
