Mini Excavators

E30D

6,658 lb Mini Excavator

GET A PRICE TODAY

MODEL SPECIFICATION

GROSS CAPACITY

24.4 HP (18.2 KW)

HYDRAULICS

8.8 GALLON (US)

ENGINE

D1703‌‌‌‬‍‬‌‌‌‌‌‍‬‌‬‌‍‌‌‌‍‌‌‌‌-M

MAX DIGGING DEPTH - STD/ LONG ARM

8 FT 8 IN ( 2640MM) /

9 FT 3 IN (2830 MM)

MAX DIGGING HEIGHT - STD/ LONG ARM

10 FT 2 IN (3110 MM) /

10 FT 8 IN (3240 MM)

OPERATING WEIGHT

6,658 LBS

BUILD SPECIFICATION

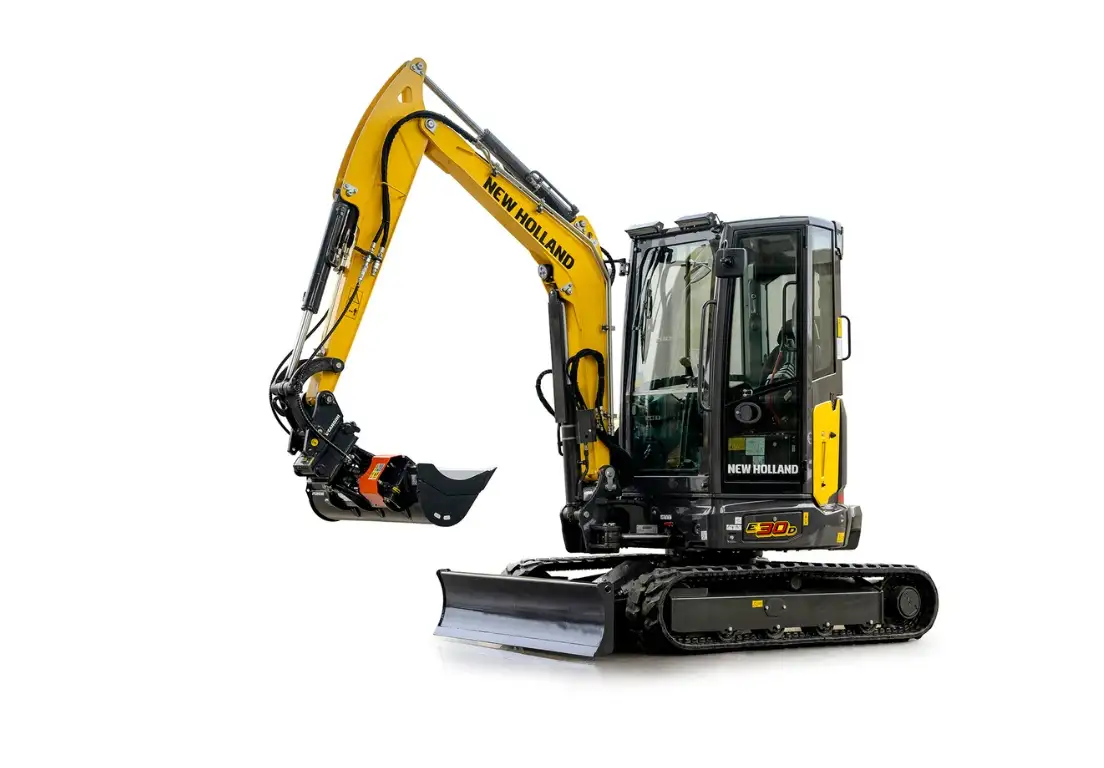

D Series mini excavators from New Holland Construction are built in-house and are designed for an improved operator experience, performance and jobsite efficiency. The E30D is a more capable, versatile machine tailored for construction crews, landscapers, utility contractors and municipalities looking to do more with a compact framework.

FEATURES

MINI EXCAVATOR, BIG POWER

The E30D is powered by a 24.4 hp (18.2 kW) Stage V-certified Kubota D1703-M engine, known for durability and low emissions. This power is housed in a compact and easily transportable package, measuring 8 ft 3 in (2520 mm) in height and 15 ft 8 in (4780 mm) in overall transport length.

ARMED TO DIG

Specify your D Series compact excavator with the arm length to best suit your requirements. Length on the E30D standard digging arm measures up to 3 ft 11 in (1.20 m) and 4 ft 7 in (1.40 m) with the long arm.

The standard arm yields 8 ft 8 in (2640 mm) of maximum digging depth and gets a maximum 9 ft 3 in (2830 mm) below surface with the long arm. With all this muscle, plus 4116 lbf (18.3 kN) of standard arm digging force, the E30D will quickly become your partner in productivity.

DESIGNED TO DUMP

The standard arm on the E30D provides a maximum 10 ft 2 in (3110 mm) of dump height and 7868 lbf (35 kN) in bucket breakout force. If your operation requires a greater dump height, opt for the optional long arm that gets up to 10 ft 8 in (3240 mm) in maximum dump height.

ATTACHMENTS FOR DEDICATED EFFICIENCY

Powering demanding attachments is a key New Holland advantage.With the right attachment, New Holland's excavators can be used for a diverse range of jobs from fence installation to concrete breaking.The E30D arrives ready to run a wide array of attachments like hydraulic hammers, compaction plates, grapples and mulchers. Models are available with factory-installed couplers, buckets and thumbs.

SIMPLE SERVICEABILITY

For contractors and operators, serviceability is a key component to weigh when considering mini excavators. The E30D includes a tipping cab/canopy for full engine access, as well as three large side and rear panels that offer fast access to key service points. Just two bolts need to be removed to tip the cab.

DESIGNED FOR AND AROUND YOU

The E30D is available with a ROPS/FOPS canopy or a fully enclosed cab. Both configurations are packed with comfort and safety features. In the cab, operators will find a fabric mechanical seat, height-adjustable armrests, manual or automatic climate control; plus, six directional vents and intuitive joystick-mounted controls that move with the seat for smoother, more precise operation over uneven terrain.

Additional cab features include a sliding right-side window, overhead-opening front window, radio and speakers, rearview mirrors, front wiper/washer, USB and 12V charging ports and bottle holder. See real-time feedback on coolant and hydraulic oil temperatures, fuel levels, engine RPM and machine hours. Safety-focused details include a control cut-out lever, manual/auto idle settings, RPM hand dial, a 2-inch seat belt, emergency exit hammer and keyed locks common to the ignition.
